ADAPTIVE TRAFFIC SIGNAL SOLUTIONS

Adaptive Signal Control Technology enhances traffic flow, reduces delays, and minimizes emissions for safer and faster travel.

GET QUOTE

Adaptive Traffic Control System (ATCS)

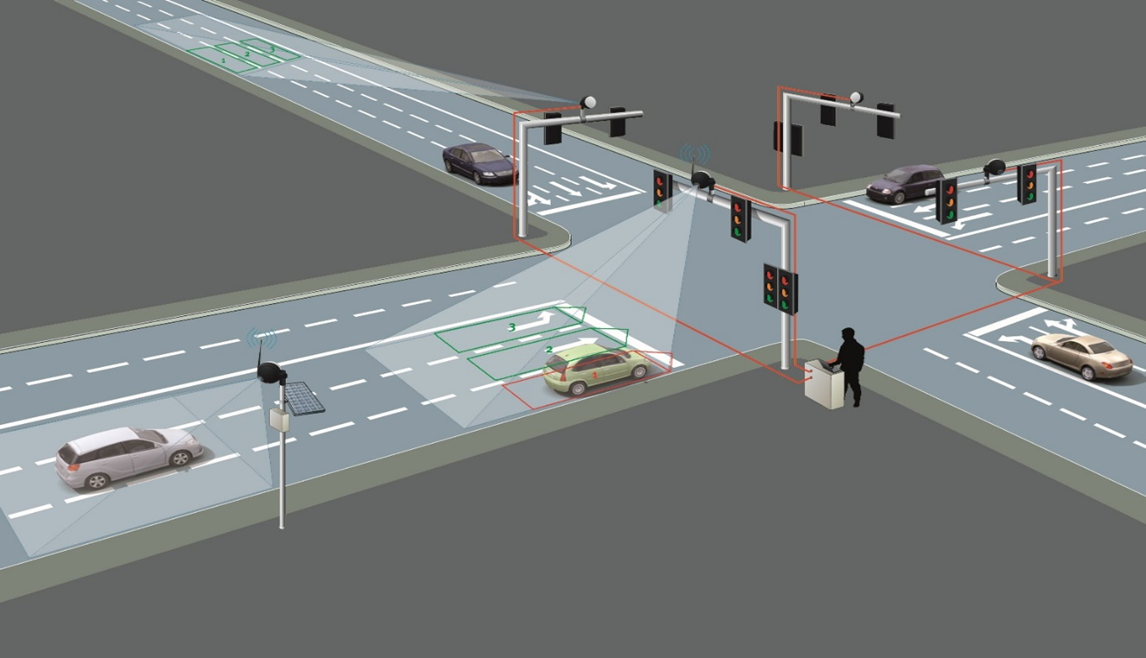

Adaptive Traffic Control System (ATCS) are Traffic Signal which are used to control the Vehicular Traffic Very Smartly without any Human Intervention. It Consists of Traffic Camera Detectors equipped with Artificial Intelligence (AI) to count the number of vehicles and calculate appropriate green time required and it simultaneously communicate with traffic controller to change the green timings as per the vehicle count. ATCS Traffic Controller is very high end Microprocessor based traffic controller with Linux Operating System which will communicate with Traffic Command centre and it will display complete information about the junction in command centre and VIP movement and Signal Timings can be controlled from Command centre. And Live Traffic Can be viewed through NVR Kept at the junction.

Key Features

  • Adaptive traffic control with camera detectors for vehicle counting.
  • Automatic timing adjustments after every 3 cycles.
  • Monitor the system from the traffic control room.
  • Live traffic viewing through detector cameras.
  • Green wave synchronization for smoother traffic flow.
  • Dual-color timers (Red and Green) for fixed mode timing display.
  • Control system remotely for VIP and ambulance pre-emption.
  • Connectivity options: GPRS, WiFi, LAN.
  • GPS time synchronization for accurate timing.
  • Mobile application for complete system control.
  • Solar hybrid power operation.
  • Fault detection from the central control room.

Specifications

  • Traffic lights: 300mm dia round, LEDs as per IRC guidelines.
  • Traffic timer: Tri-color graphical timer, 12-inch digit height.
  • Cantilever poles: 7.2m height, IS 1239_2004 compliant.
  • Standard poles: 6m height, 4-inch diameter.
  • Cables: 12-core, 6-core, CAT6 outdoor, site consumption-based.
  • Power supply: 230V AC mains.
  • UPS: 24V 1.5KVA solar UPS, 8 hours backup, 500W solar panel.
  • Hooter: 110-decibel alarm for visually impaired individuals.
