RADAR SPEED DISPLAY

Radar speed signs are interactive, plug-and-play devices designed to display vehicle speed and encourage safer driving. Available in multiple sizes (12", 15", 18", and 24") with easy mounting options for poles or signposts.

GET QUOTE

RADAR SPEED DISPLAY (RSD)

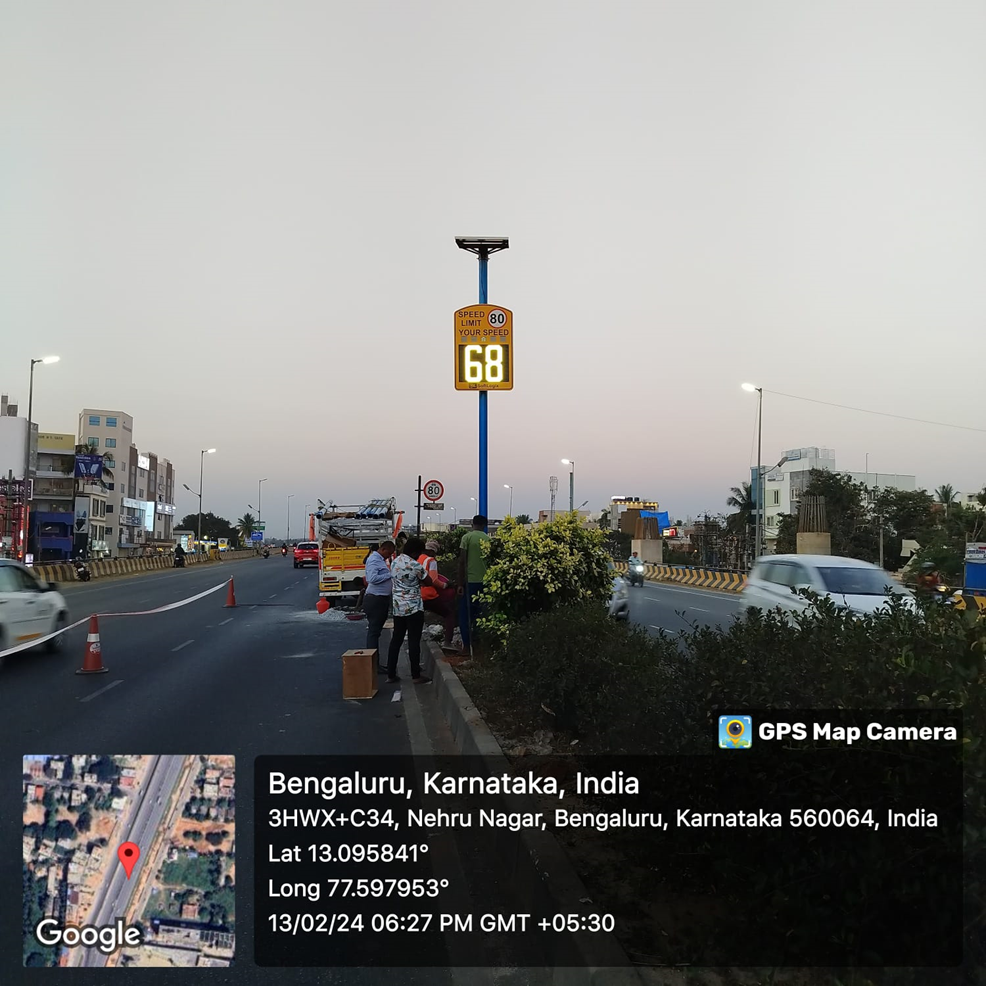

Radar speed sign is an interactive sign displays vehicle speed as motorists approach. The purpose of radar speed signs is to slow cars down by making drivers aware when they are driving at speeds above the posted limits. It is designed by us in such a way to be used like a plug and play device, with very easy accessible mounting options and connections to install a signs on a standard sign post or a pole. We have Multiple Size Options to meet Customer Needs 12 inch, 15 inch, 18 inch and 24 Inches

Specifications

  • Model Number: SLRSD-GRP-18
  • Display Type: 18-inch Graphical Display
  • No of Digits: 3 Digit [0 - 199]
  • Speed Display Range: 3 - 199 Kmph
  • Detection Range: 3 to 150 Metres
  • LEDs: 3078 Nos Ultrabright RGB 3535 SMD LEDs
  • Working Voltage / Power: 230V AC / 12V DC / 30 – 40W
  • Temperature / Humidity: T1 (0°C to 55°C) / 10% - 95% RH
  • Body: MS / Aluminium with Black Colour Powder Coating
  • IP Grade: IP65 Front / IP54 Back Protection Grade
  • Front Screen: MS sheet for Facia 1.2mm with 10mm Corner Bending
  • Connectivity: RS232 / Wi-Fi / 4G
  • Display Visibility: More than 200 Metres
  • Life: 1,00,000 Hours
  • Data Storage: With Internal Memory Card / Server [Optional]
  • Web Application: Mobile / Web-Based Dashboard to View/Configure/Retrieve Data
  • Weight: Approx 24 Kgs

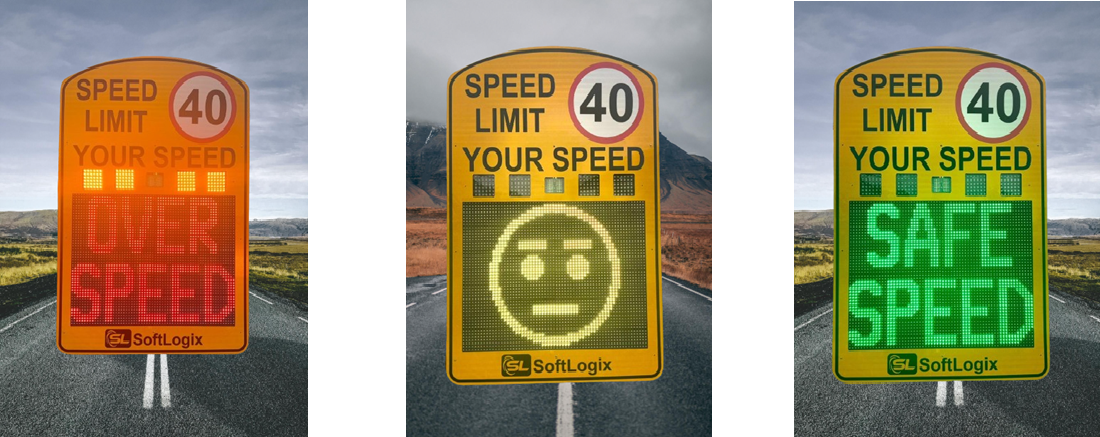

  • Text Display Options:
    • Red: OVER SPEED / SLOW DOWN / GO SLOW
    • Amber: AVRG SPEED / CHECK SPEED / DRIVE SAFE
    • Green: NICE SPEED / SAFE SPEED / THANK YOU
  • Smiley Graphics [480mm Dia]:
    • Over Speed: Red Angry Face
    • Average Speed: Amber Alert Face
    • Safe Speed: Green Smiley Face

Special Features

  • Low Power Consumption
  • High Intensity Light Visible up to 200 meters
  • Anti Phantom Performance
  • Full Proof IP Protection
  • Auto Dimming Function (Available on Client Request)
  • Multiple LEDs to Ensure Functionality Even During LED Failures
  • User-Friendly Web/Mobile Dashboard to Set Speed Values, Messages, and Retrieve Logs

Optional Accessories

  • Pole: 100mm Dia Pole with 3mm Thickness with Suitable Accessories
  • Solar Backup System: 12V 200W Solar Panel and 12.8V 60 AH LiFEPO4 Battery
  • Backup Duration: Approximately 2-3 Days Under Ideal Conditions
